3.77MWh [1P] - 285Ah
4.07MWh [0.5P] - 306Ah
5.64MWh [0.25P/0.5P] - 530Ah
AC-Coupled Liquid Cooling LFP BESS
-
UL9540 & UL9540A Certified System
-
CATL LFP batteries with high thermal stability
-
0.5P/1P support
-
Long service life with 12,000 cycles
-
<3% Temperature Gap with Liquid cooling system
-
Liquid Cooling System
-
IP55 Enclosure
-
Resistance up to C5 corrosion level, with 20- year reliability
-
Prevention-oriented fire protection strategy, with a separate fire protection system
-
Support explosion-proof fan, Optional dry pipe
-
Modular design for the 1,500V system
-
Separate arrangement of electrical room and battery room for convenient maintenance
-
Non-walk-in/modular design with high integration, saving the floor space by 50%
-
Optional DCDC to manage each cluster
-
Prefabricated installation, reducing on-site installation costs and commissioning time
-
Easy transportation and Installation
AC COUPLED BESS SOLUTIONS YOU CAN TRUST
Key Features
-
3.77MWh LFP Battery Energy Storage System (`1P)
-
4.07MWh LFP Battery Energy Storage System (0.5P)
-
5.64MWh LFP Battery Energy Storage System (0.25P/0.5P)
-
Dimension: 6058mm*2438mm*2896mm; 35T weight
-

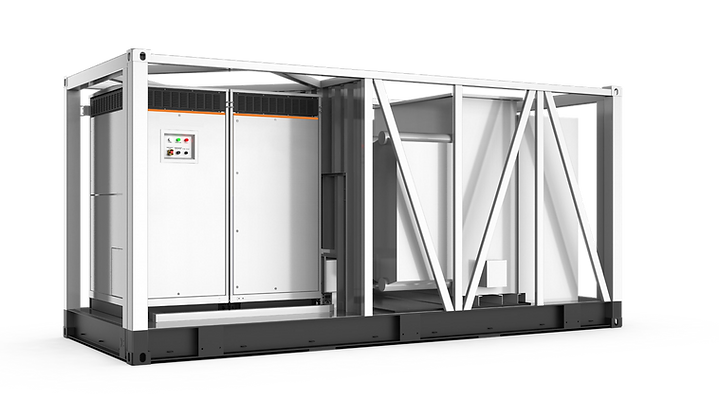

PCS: 2.75MW, 3.15MW, 3.45MW, 4MW & 5MW
-
Integrated MV Transformer [Option] 12kV to 35kV
-
Bidirectional power conversion system [PCS] with full four‐ quadrant operation
-
IP54/ Nema3R, C5 anti-corrosion [Option], compatible with hash environment
-
Advanced three‐level technology, max. RTE 94%
-
Liquid Cooling System
-
Black Start Integrated
-
Fast active/reactive power response
-
L/HVRT, L/HFRT, soft start/stop, specified power factor control and reactive power support
-
Battery Management System (BMS)
-
Fire Suppression System & Safety Protections (Alarm, Sensors & Detectors)
-
Battery Certifications:UL9540, UL9540A, UL1973, UN 38.3, IEC 62933-5-2,IEC 63056, IEC 61000-6-2/-4+UKCA, IEC 62477+UKCA, IEC 60730-1, IEC 62619
-
PCS Certifications: UL1741, UL1741 SA/SB, IEEE 1547: 2018, Rule 21, CSA C22.2 No.107.1-16
-
Compliance with NFPA855, 69, 70
Applications
Our BESS solutions are ideal for:
-
On-grid Utility Application
-
Spinning Reserves
-
Demand Response
-
Voltage Support
-
Utility Curtailment Recovery
-
Clipping Energy Recovery
-
Frequency Regulation
-
Back-up Power
-
Peak Power Shaving
